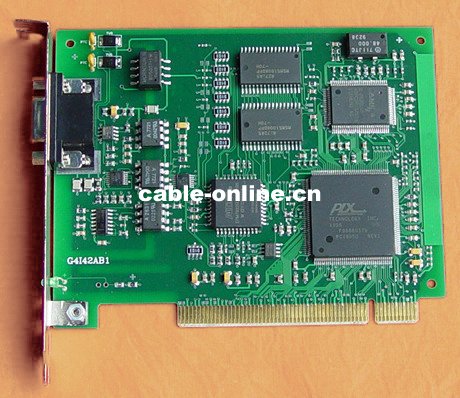

CP5611:a PCI card for programming devices/PCs with PCI slot
CP5611 communication card which is Anti-lightning and anti-surge, corresponding to the Siemens 6 GK1 561-1AA00, photoelectric isolation, and applied to desktop computer's PCI slots, to achieve the PROFIBUS DP / MPI / PPI communications between PC or PG and the SIMATIC network, communication rate is 9.6 Kbps ~ 12Mbps.
Not made by Siemens,OEM product
Not including MPI extension cable for card communication,if you also need this,please also order this:
http://www.cable-online.cn/index.php?main_page=product_info&products_id=282
Overview:
CP5611 communication card is optoelectronic isolated design for industrial applications.There is anti-lightning & anti-surging protection circuit and over-current protection on the RS485 port.The adoption of industrial chip applies to a wide temperature range. CP5611 card is used to achieve the PROFIBUS DP / MPI / PPI communication between PC or PG and the SIMATIC network.
Communication services:
PROFIBUS-DP master grade 1 and 2
PROFIBUS-DP slave and SOFTNET-DP slave
MPI/PPI communication
PG/OP communication
S7 communication with SOFTNET-S7
S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-DP or SOFTNET-S7
CP5611 applies to the following software:
STEP7 V.52 and above
SOFTNET-S7
SOFTNET-DP
SOFTNET-DP slave
COM PROFIVUS V3.3 and above
STEP 7-Micro/WIN V3.1 and above
ProTool, ProToo/Pro
NCMPC
Technical specifications:
Transmission rate:9.6Kbps~12Mbps, corresponding maximum communication distance conforms to PROFIBUS standard
Interface: PROFIBUS/MPI/PPI, isolated 9-pin Sub-D socket
Isolation Voltage: 1000VDC
RS485 port with anti-lightning and anti-surging protector, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)
Standard: ITU-TK20/21, VDE 0433. ± 15KV ESD (ESD) protection
Over-current protection: RS485 interface can withstand up to 60V voltage caused by the sustained over-current
PG/PC connection: PCI2.1 standard slot
Standard voltage: +5 VDC
Power: 2.0W
Operating temperature: 0 ~ + 70 ℃
Size (width × high) (mm): 102 × 130
Weight: 100g
